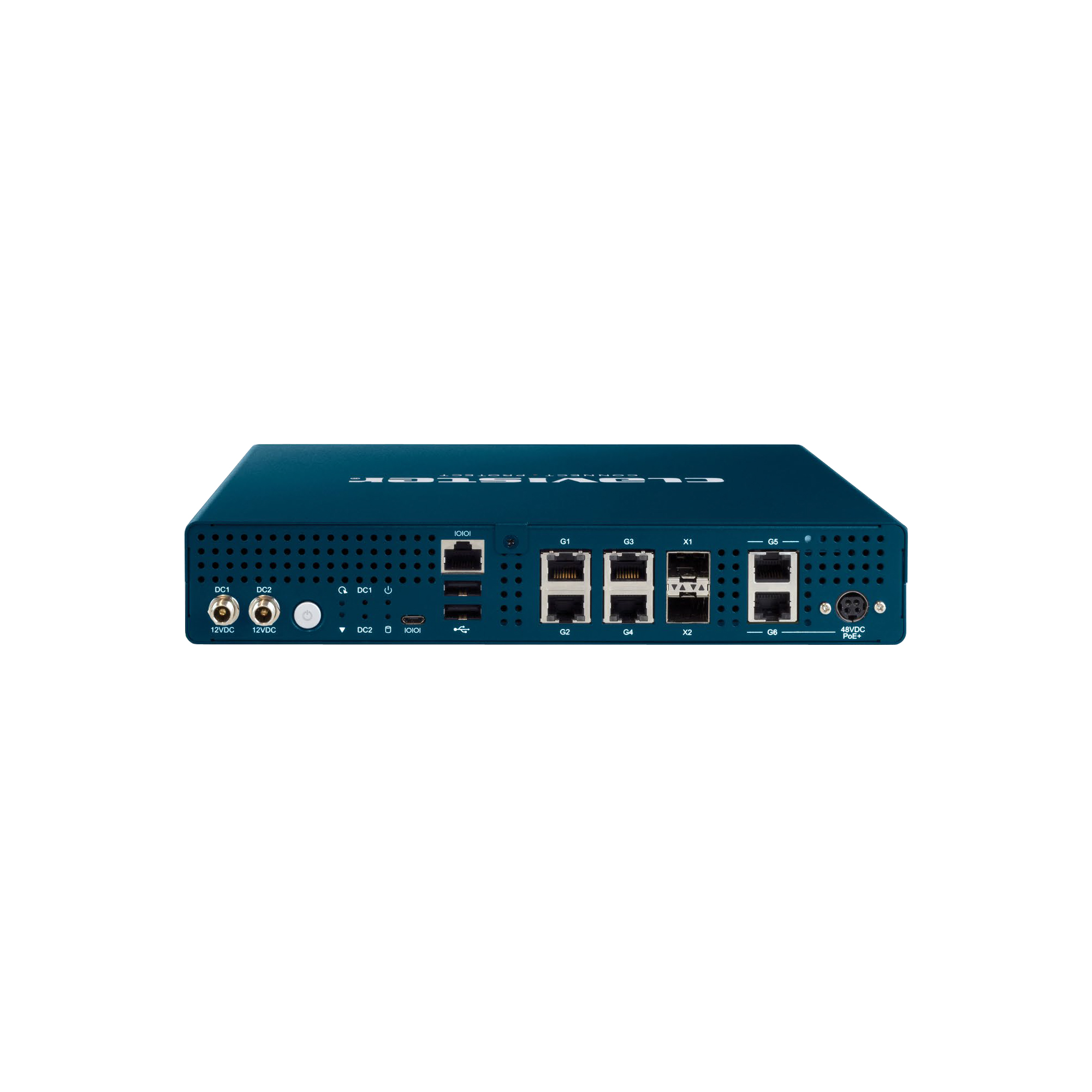

NetShield 520

6 x 1 GbE RJ45, 2 x 10 GbE SPF+ Next-Generation Firewall for SMBs to Mid-sized Enterprises

Description

Next-Generation Firewall (NGFW) for SMBs to mid-sized enterprises, ideal for home or distributed office deployments designed to prevent cyber-attacks, reduce complexity and lower your costs. Engineered to deliver enhanced network visibility, protection and performance to help IT managers and system administrators to address some of the greatest challenges facing networks today.

• Up to 15 Gbps firewall performance
• Up to 2 Gbps SD-WAN performance
• 6 x 1 GbE RJ45, 2 x 10 GbE SPF+
• RJ45 console
• Ideal as SMB firewall or edge node in a secure SD-WAN

Additional information

DIMENSIONS & POWER

Form Factor

Rack Mounted / Desktop

Dimensions (H x W x D)

44 x 251 x 250 mm
(1.73 x 9.88 x 9.84 in)

Rack Mountable

Yes (Simple Kit Included)

DIN-rail Mountable

N/A

Maximum Power Consumption

20.7 Watt

Power Supply (AC)

100-240 VAC, 50-60 Hz

Power Supply (DC)

N/A

Redundant Power Supplies

Yes (Optional)

Hot-swappable Power Supplies

Yes

INTERFACES & MODULES

Ethernet Interfaces

6 x 1 GbE RJ45, 2 x 10 GbE SPF+

Power-over-Ethernet Interfaces

Yes (Enable PoE+ on two onboard RJ45 ports using optional PSU)

Ethernet Bypass Interfaces

N/A

Console Port

1 x COM RJ45

Number of Expansion Slots

N/A

OPERATING ENVIRONMENT & CERTIFICATIONS

Safety

CE, UL

EMC

FCC, CE, VCCI

Operating & Storage Humidity

0 % to 95 % (Non-condensing)

Operating Temperature

5°C to 35°C (41°F to 95°F)

SYSTEM PERFORMANCE & CAPACITY

Firewall Throughput (1518 / 512 / 64 byte, UDP)

15 / 7 / 1.14 Gbps

Firewall Throughput (Packets per Second)

1.6 Mbps

Real World Application Traffic

3 Gbps

Concurrent Connections

2,000,000

New Connections/Second (TCP)

28,000

IPsec VPN Throughput (1420 / 512 / 64 byte, UDP)

2 / 1.8 / 0.3 Gbps

Gateway-to-Gateway or Roaming IPsec VPN Tunnels

2,000

VLANs

512

Virtual Routers

50

OPTIONAL PREMIUM RACK MOUNT KIT

RACK-500S

Upgrade your NetShield 500 Series with this premium rack mount kit, that includes mounting for PSUs.

Downloads

Clavister NetShield Data Sheet
