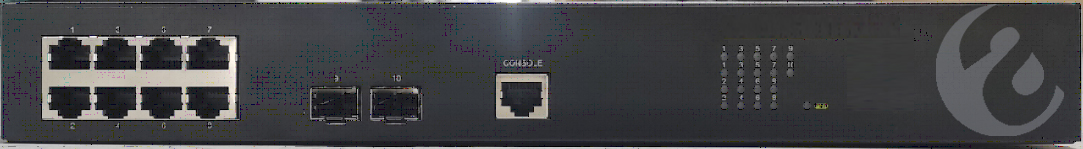

SS2GR4210P (R2)

L2 Plus Gigabit Ethernet PoE+ Switch

Categories: , ,

Description

SS2GR4210P(R2) are cost-effective GbE standalone switches which provide enterprise-class access for campus and branch applications. These fully managed switches can provide advanced Layer 2 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of network, SS2GR4210P(R2) provide scalable, secure, and energy-efficient business network access with intelligent services.

• 8×10/100/1000Base-T+2×100/1000Base-X (SFP)
• 1 console
• PoE+, up to 125w
• AC power supply
• Switching capacity: 20Gbps
• Forwarding rate: 14.88Mpps

Key Features and Highlights
• Green Energy
SS2GR4210P(R2) complies with IEEE 802.3az (Energy-Efficient Ethernet) standard, dramatically lower power consumption. With the Innovative
port-LED Shut-off function, the user can automatically set the switch port-LED UP or DOWN at a specified period according to their needs to
achieve functional, energy-saving correct results.A full account of low noise requirements of the environment, SS2GR4210P(R2) uses Fanless
Design and Smart fan strategies to real-time temperature monitoring system, and reduce the noise pollution.
• Simple Operation and Maintenance
• High Reliability
VCT, DDM (Digital Diagnostic Monitoring) and other features achieve rapid detection of the network failures; reduce operation and maintenance
difficulty.
SS2GR4210P(R2) support 4 Gigabit uplink ports, which could be designed to offer redundant uplinks with various ring protection applications,
effectively raised the expansibility and performance of network.
G.8032 provides sub-50ms protection and recovery switching for Ethernet traffic in a carrier ring topology. SS2GR4210P(R2) support G.8032 v2
and can be deployed in a variety of complex network topologies including single ring, tangent ring, intersecting rings, double rings and other home
networking.
• Abundant Multicast Features
SS2GR4210P(R2) also support MVR (Multicast VLAN Register), selectively allows traffic to cross between different VLANs for bandwidth and
security reasons. With MVR Trunk function, which could associate multicast VLAN to trunk port, SS2GR4210P(R2) combines the VLAN data into
the same link, saving lots of resources for users.
SS2GR4210P(R2) could prevent multicast traffic from flooding via IGMP Snooping, while multicast traffic is only forwarded to ports associated to
multicast devices.

Additional information

Model

SS2GR4210P (R2)

Ports

8 x 100/1000Base-T + 2 x 100/1000Base-
X (SFP) Auto-MIDX

Switching Capacity

20 Gbps

Forwarding Rate

14.88 Mpps

Flash

32M

RAM

128M

MAC Address Table

8K

Jumbo Frame

10K

ACL Table

1408

Queues per port

8

VLAN Table

4K

Forwarding

Storage and Forwarding

VLAN

Port-based VLAN
IEEE802.1Q
private VLAN
Protocol VLAN
Voice VLAN
MAC VLAN
Normal QinQ, Selective QinQ, Flexible QinQ
VLAN Translation, N:1 VLAN Translation

DHCP

IPv4/IPv6 DHCP Client,IPv4/IPv6 DHCP Relay
Option 82,Option 37/38
IPv4/IPv6 DHCP Snooping,IPv4/IPv6 DHCP
Server

Reliability

Spanning Tree
– 802.1D STP, 802.1W RSTP, 802.1S MSTP
– Root Guard, BPDU Guard, BPDU Forwarding

LACP
8 groups / 8 ports

L2 Ring Protection MRPP / ERPS(G.8032)
Loopback Detection
Fast Link

Security

– IP ACL, MAC ACL, MAC-IP ACL, User-
Defined ACL
– Time Range ACL
– ACL on VLAN interface
– Storm Control based on packets and bytes
– Port Security, MAC Limit based on VLAN
and Port
– Anti-ARP-Spoofing , Anti-ARP-Scan, ARP
Binding
– ND Snooping
– DAI
– IEEE 802.1x, Web Portal
– Authentication, Authorization, Accounting
– Radius, TACACS+

Multicast

– IGMP v1/v2/v3 snooping, IGMP Fast leave
– MVR
– MLD v1/v2 snooping
– IPv4/IPv6 DCSCM(D)

QoS

– 8 Queues Per Port
– Bandwidth Control
– Flow Redirect
– Classification based on ACL, VLAN ID,
– COS, TOS, DSCP, IPv6 Flow Label
– Policing Based on Port and VLAN
– Single Rate Three Colors, Dual Rates
– Three Colors for Policing
– Remark DSCP, COS/802.1p, Precedence,
TOS
– SP, WRR, SWRR, DWRR for Scheduling

Maintenance and Operation Management

– XModem/TFTP/FTP
– CLI, Telnet, Console
– Web/SSL (IPv4/IPv6)
– SSH (IPv4/IPv6)
– SNMPv1/v2c/v3
– SNMP Trap
– Public & Private MIB interface
– RMON 1,2,3,9
– Ping, Trace Route
– Radius Authentication
– Syslog (IPv4/IPv6)
– SNTP/NTP (IPv4/IPv6)
– Dual IMG, Multiple Configuration Files
– Port Mirror, CPU Mirror, RSPAN, ERSPAN
– sFlow
– OAM*
– Dying GASP
– VCT, DDM
– ULDP(like Cisco UDLD)
– LLDP/LLDP MED

Green Energy

IEEE 802.3az (Energy Efficient Ethernet)
Fanless (10P, 10P-PL & 28P)
LED Shut-off

Dimentions & Weight

Width x Height x Depth
330 x 44 x 220 mm
12.99” x 1.73” x 8.66”

Power Input

100-240 VAC, 50/60Hz

Power Consumption

145w

Cooling

Passive

Relative Humidity

5%~95%,non-condensing

Working Temperature

0°C~50°C

Storage Temperature

-40°C~70°C

EMC Safety

CE, RoHS

Order Information

SS2GR4210P(R2): L2 Gigabit Intelligent Ethernet PoE Switch with 8*10/100/1000Base-T and 2*100/1000Base-SFP ports, 100-240VAC Power Input. 30w POE+ Supported. PoE output 125W
