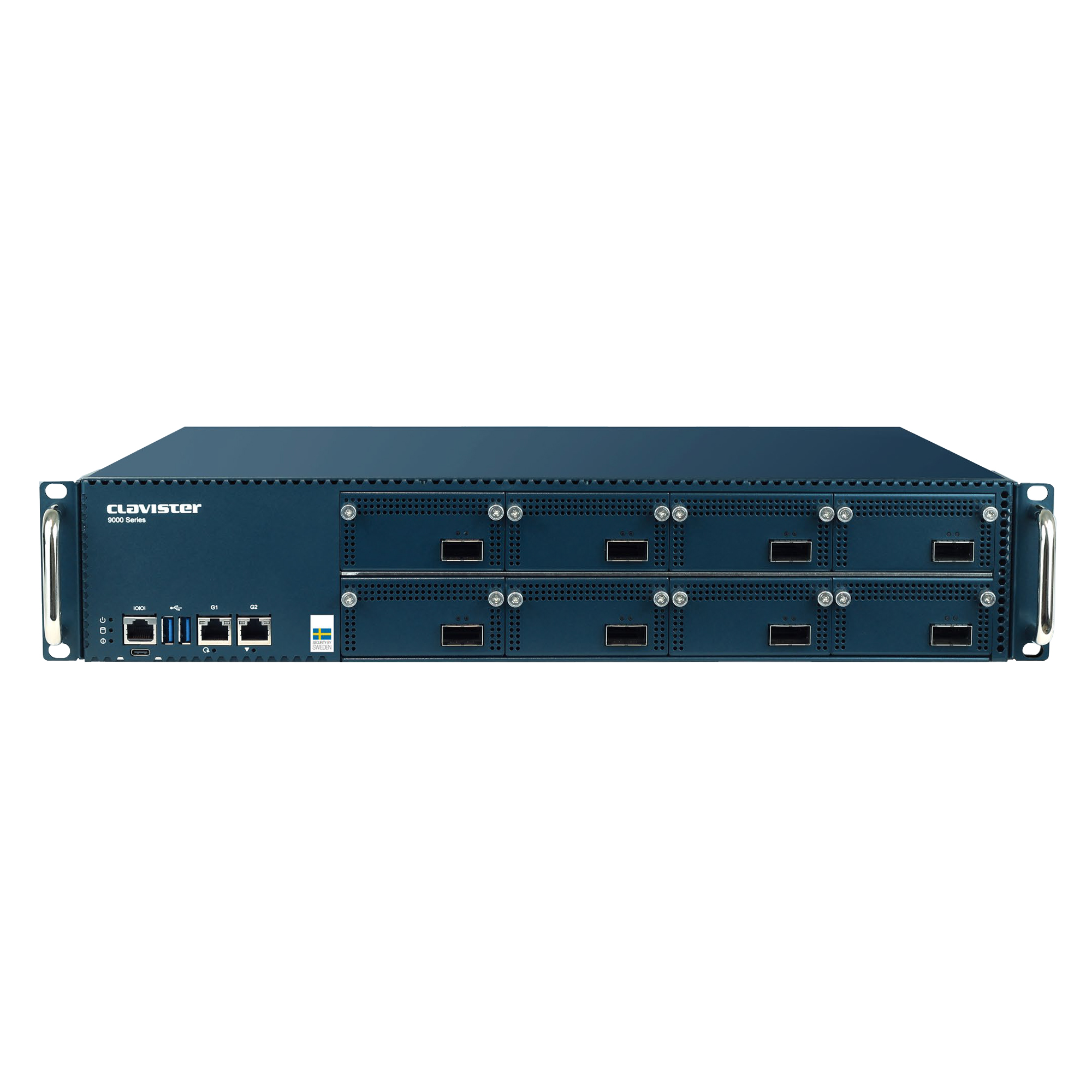

NetShield 9200

2 x 1 GbE RJ45, 8 x Expansion Slots Next-Generation Firewalls for Large Enterprises

Description

Clavister NetShield 9000 is a series of firewalls that offer high performance, scalability and flexibility of deployment – perfect combination when you are looking to secure datacentres, service providers and large enterprises. NetShield 9000 series comes with secure SD-WAN features, to cover distributed and hybrid networks and is capable of serving a wide variety of use cases against advanced cyber threats.

• Up to 200 Gbps firewall performance
• Up to 25 Gbps IPsec performance
• Up to eight free expansion modules slots
• RJ45 console
• Dual power supply support

Additional information

DIMENSIONS & POWER

Form Factor

Rack Mounted

Dimensions (H x W x D)

88 x 443 x 600 mm
(3.52 x 17.72 x 24.00 in)

Rack Mountable

Yes (Included)

DIN-rail Mountable

N/A

Maximum Power Consumption

345 Watt

Power Supply (AC)

100-240 VAC, 50-60 Hz

Power Supply (DC)

48 VDC (Optional)

Redundant Power Supplies

Yes (Optional)

Hot-swappable Power Supplies

Yes

INTERFACES & MODULES

Ethernet Interfaces

2 x 1 GbE RJ45

Power-over-Ethernet Interfaces

Yes (Using optional Expansion Module)

Ethernet Bypass Interfaces

N/A

Console Port

1 x COM RJ45

Number of Expansion Slots

Eight (8)

OPERATING ENVIRONMENT & CERTIFICATIONS

Safety

CE, UL, TUV

EMC

FCC, CE, VCCI

Operating & Storage Humidity

0 % to 95 % (Non-condensing)

Operating Temperature

0°C to 40°C (32°F to 104°F)

SYSTEM PERFORMANCE & CAPACITY

Firewall Throughput (1518 / 512 / 64 byte, UDP)

200 / 200 / 45 Gbps

Firewall Throughput (Packets per Second)

89 Mpps

Real World Application Traffic

80 Gbps

Concurrent Connections

20,000,000

New Connections/Second (TCP)

300,000

IPsec VPN Throughput2 (1420, UDP)te, UDP)

25 Gbps

Gateway-to-Gateway or Roaming IPsec VPN Tunnels

5,000

VLANs

4,096

Virtual Routers

250

EXPANSION MODULES

CM-NET84

8 x 1 GbE
RJ45 Copper

CM-NET85

8 x 1 GbE
RJ45 SFP

CM-POE86

PoE, 8 x 1 GbE
RJ45 C opper
Incl. External 48V PoE PSU

CM-NET143

4 x 10 GbE
SF P+

CM-SEC144

IPsec Accelerator
& 4 x 10 G bE SFP+

CM-NET220

2 x 25 GbE
SFP 28

CM-NET420

2 x 40 GbE
QS FP

Downloads

Clavister NetShield Data Sheet
