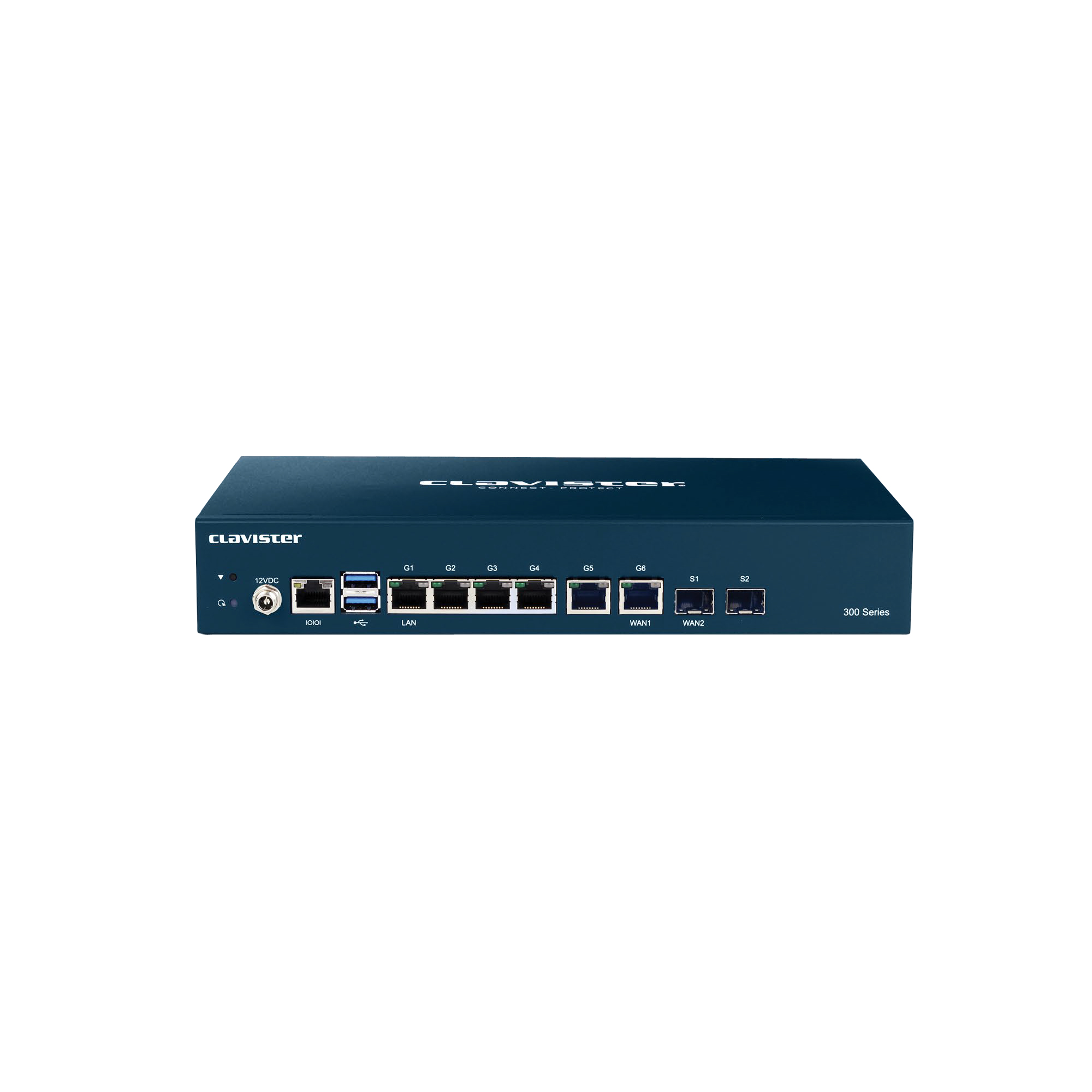

NetShield 380

6 x 1GbE (RJ45), 2 x 1 GbE SFP Next-Generation Firewall for SMBs to Mid-sized Enterprises

Description

Next-Generation Firewall (NGFW) for SMBs to mid-sized enterprises, ideal for home or distributed office deployments designed to prevent cyber-attacks, reduce complexity and lower your costs. Engineered to deliver enhanced network visibility, protection and performance to help IT managers and system administrators to address some of the greatest challenges facing networks today.

• Up to 8 Gbps firewall performance
• Up to 2 Gbps SD-WAN performance
• 6 x 1 GbE (RJ45), 2 x 1 GbE SFP
• RJ45 console
• Ideal as SMB firewall or edge node in a secure SD-WAN

Additional information

DIMENSIONS & POWER

Form Factor

Desktop

Dimensions (H x W x D)

44 x 270 x 160 mm
(1.73 x 10.62 x 6.29 in)

Rack Mountable

Yes (Included)

DIN-rail Mountable

N/A

Maximum Power Consumption

19.5 Watt

Power Supply (AC)

100-240 VAC, 50-60 Hz

Power Supply (DC)

N/A

Redundant Power Supplies

N/A

Hot-swappable Power Supplies

N/A

INTERFACES & MODULES

Ethernet Interfaces

6 x 1 GbE RJ45, 2 x 1 GbE SFP

Power-over-Ethernet Interfaces

N/A

Ethernet Bypass Interfaces

N/A

Console Port

1 x COM RJ45

Number of Expansion Slots

N/A

OPERATING ENVIRONMENT & CERTIFICATIONS

Safety

CE, UL

EMC

FCC, CE, VCCI

Operating & Storage Humidity

0 % to 95 % (Non-condensing)

Operating Temperature

5°C to 35°C (41°F to 95°F)

SYSTEM PERFORMANCE & CAPACITY

Firewall Throughput (1518 / 512 / 64 byte, UDP)

8 / 6.26 / 1 Gbps

Firewall Throughput (Packets per Second)

1.5 Mbps

Real World Application Traffic

1 Gbps

Concurrent Connections

2,000,000

New Connections/Second (TCP)

27,000

IPsec VPN Throughput (1420 / 512 / 64 byte, UDP)

2 / 1.8 / 0.3 Gbps

Gateway-to-Gateway or Roaming IPsec VPN Tunnels

2,000

VLANs

512

Virtual Routers

50

Downloads

Clavister NetShield Data Sheet
